跳到内容 In the structural steel industry, choosing the right frame material is crucial for ensuring strength, durability, and cost-efficiency in construction, manufacturing, and transportation applications. Two of the most popular steel profiles used for framing are steel C channels and I-beams. Both have unique characteristics and advantages that make them suitable for different structural needs.
This comprehensive article will explore the primary differences between steel C channels and I-beam frames, helping B2B buyers, engineers, and fabricators make informed decisions. We will cover their design, strength, applications, advantages, disadvantages, and provide a detailed comparison table.
For high-quality steel C channels and related products, visit StrutcChannel.com, a trusted supplier specializing in structural steel profiles.
1. What Is a Steel C Channel?
A steel C channel, often simply called a channel, is a structural steel profile shaped like the letter “C.” It consists of a flat web with two parallel flanges extending perpendicularly from the web edges. The open side of the “C” shape allows for easy attachment to other components.
Key Features:
- Lightweight yet strong for its weight
- Flat surfaces ideal for mounting and bolting
- Available in various sizes, thicknesses, and materials (carbon steel, stainless steel, galvanized steel)
Common Uses:
- Floor cross members
- Equipment haulers and utility trailers
- Wall and roof framing
- Support for machinery and piping
2. What Is an I-Beam Frame?
An I-beam, also known as a universal beam, is a steel profile with a cross-section shaped like the letter “I.” It has a central vertical web and two horizontal flanges at the top and bottom.
Key Features:
- Excellent strength-to-weight ratio
- High resistance to bending and shear forces
- Open construction allows for coating and corrosion protection on all surfaces
Common Uses:
- Large trailers and deckovers

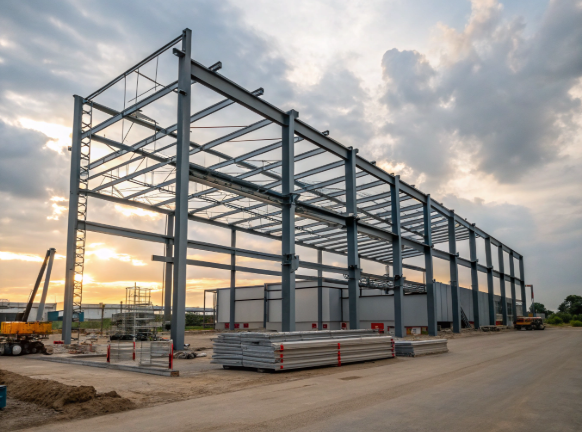

- Structural beams in buildings and bridges
- Heavy-duty load-bearing applications
3. Structural Strength and Load Handling
Steel C Channel
- Strong for its lightweight nature, making it suitable for applications where weight savings are important.
- Provides good resistance to bending along the web but can twist or bend sideways under high stress, especially over long unsupported spans.
- Ideal for smaller payloads and shorter spans.
I-Beam
- Superior at handling both vertical and horizontal stresses due to its design.
- Best weight-to-strength ratio for high payloads and long spans.
- Susceptible to twisting under very high stress or long lengths but can be reinforced with torque tubes or underframe bridges.
4. Corrosion Protection and Surface Treatment
Both steel C channels and I-beams can be treated to resist corrosion:
- Galvanization: Hot-dip or electro-galvanized coatings protect steel from rust.
- Powder Coating and Painting: Provide aesthetic finish and additional protection.
- Stainless Steel Options: For environments requiring high corrosion resistance.
Steel C channels have the advantage of being fully coatable on all surfaces, including inside the channel, reducing corrosion risk compared to tubular steel.
5. Weight and Payload Considerations
- C Channels: Lighter weight leads to increased payload capacity, especially important in trailer manufacturing and transport applications.
- I-Beams: Heavier but offer higher strength, suitable for heavy-duty applications requiring maximum load-bearing.
6. Cost Implications
Generally, steel C channels are more cost-effective for applications requiring moderate strength and weight savings. I-beams, due to their higher material volume and strength, tend to be more expensive but justify the cost in high-load scenarios.
7. Installation and Fabrication
- Steel C Channels: Easier to coat on all sides, simpler to bolt and weld in tight spaces, often used as cross members or secondary framing.
- I-Beams: Require reinforcement for long spans, may need additional components like torque tubes to prevent twisting, preferred for primary structural members.
8. Applications Summary
| Application Type | Preferred Steel Profile | Reason |
|---|---|---|
| Small to medium trailers | Steel C Channel | Lightweight, corrosion-resistant, cost-effective |
| Large trailers, deckovers | I-Beam | High strength, handles heavy payloads |
| Building frames | I-Beam | Excellent bending resistance and load capacity |
| Floor cross members | Steel C Channel | Easy to install, supports moderate loads |
| Equipment haulers | Steel C Channel | Lightweight, strong enough for small payloads |
9. Customization and Availability
Steel C channels come in a variety of sizes and thicknesses, with options for slotted or solid holes to facilitate mounting and assembly. They are available in:
- Thicknesses: 1.5mm, 2.0mm, 2.5mm, etc.
- Lengths: 2m, 3m, 6m, or custom cut
- Materials: Q235 carbon steel, stainless steel 304/316, galvanized steel
I-beams are typically manufactured in standard sizes but can be customized for specific length and flange dimensions.
10. Summary Table: Steel C Channel vs. I-Beam Frame
| Feature | Steel C Channel | I-Beam Frame |
|---|---|---|
| Cross-Section Shape | C-shaped with two parallel flanges | I-shaped with vertical web and horizontal flanges |
| Weight | Lightweight, increases payload capacity | Heavier, designed for maximum strength |
| Strength | Good bending resistance, prone to twisting under high stress | Superior bending and shear resistance, needs reinforcement for long spans |
| Corrosion Protection | Can be coated on all surfaces, including inside | Can be coated on all surfaces |
| Cost | More cost-effective for moderate loads | More expensive but justified for heavy loads |
| Applications | Utility trailers, floor cross members, light structural framing | Deckovers, dump trailers, building frames |
| Installation | Easy to weld, bolt, and coat | Requires torque tubes or bridges for long spans |
| Customization | Available in various sizes, slotted or solid | Available in standard and custom sizes |
| Durability | Durable for light to moderate use | Highly durable for heavy-duty applications |
| Common Materials | Q235, stainless steel, galvanized steel | Q235, stainless steel, galvanized steel |
Conclusion
Choosing between steel C channels and I-beam frames depends largely on your project’s load requirements, budget, and application specifics. Steel C channels offer a lightweight, cost-effective solution ideal for smaller payloads and secondary framing. I-beams provide superior strength and are best suited for heavy-duty, long-span applications where maximum load capacity is required.
At StrutcChannel.com, we specialize in high-quality steel C channels tailored to your structural needs, offering customization, corrosion protection, and competitive pricing. For projects requiring robust framing solutions, combining steel C channels with I-beams can optimize both cost and performance.
